Component Templates

Lite Client

Trail: PROIV Documentation > Developer > Lite Client > Lite Client and the Browser > Component Templates

Many modern JavaScript libraries use templates to create HTML. These templates are written in HTML and loaded from the web server. The Lite Client uses templates and the default templates are in the .../lite-client/resurces/PROIVDefault-templates.js file. These templates define the way all the PROIV components are built from browser document nodes.

The template for a component or a window can be changed by loading another template file specific to an application. The templates in this file can overwrite the default templates or they can be new templates that can be referenced by a PROIV property in the components called "Template Name".

Defining Custom Templates

Defining customised templates for an application is the way to give a PROIV session a completely new look to match an HTML page. Changing the CSS will let you change the colour and size of a component but the nodes that make up the component are unchanged. A new template can also change the nodes.

One area where a new template is useful is in a PROIV popup window. The default template for the popup window is as a separate draggable window that appears on top of the session components. A new template can change a popup window to appear embedded in a form. An example of this is shown below:

This shows a default popup window.

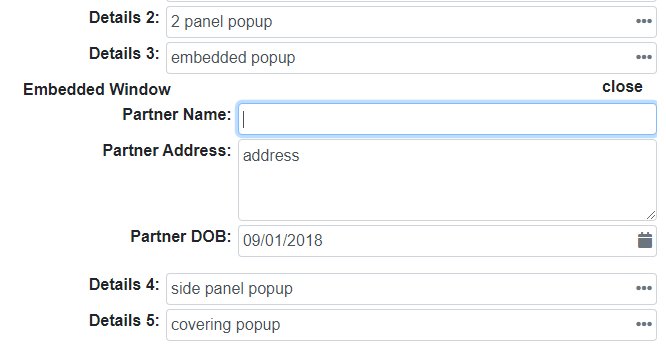

This shows an embedded popup window inserted between the Details 3 and the Details 4 fields.

The Template Definition File

The template file defines a window or component as an HTML string. The DOM nodes defined in the string can have special properties that are not inserted as node attributes but used to control the building or use of the nodes by the Lite Client. These are described below:

• isWindowNode - This identifies the DOM element as the PROIV window.
• isFieldNode - This identifies the DOM element as the root element for the PROIV component or window.
• hasPanels - This identifies the window template as one that has seperate panels.
• isDragNode - This identifies the DOM element as the node that can be used to drag the window.
• dragTarget - This identifies the DOM element as the node that can be clicked to start a drag.
• repeater - This identifies the DOM element as a node that will be repeated a number of times to display the component. This is ued to display lists and tables.
• isRowNode - This identifies the DOM element as a row in a table.
• isColumnNode - This identifies the DOM element as a column in a table.
• isImageNode - This identifies the DOM element as a component image.
• isIconNode - This identifies the DOM element as a component font icon.
• isTextNode - This identifies the DOM element as component text.
• isGroupNode - This identifies the DOM element as the top level of a componen group.
• isDisplayNode - This identifies the DOM element as the component display only node.

Template Definition Tokens

Many of the properties in a template are tokens. These are names surrounded by curly brace pairs (e.g. {{panelClass}}). When the templates are used these tokens are converted to strings in this way:

1. If the token is a mapping name then use the mapping value.
2. It the token name is a property in the component then use the property value.
3. If the token is a function in the component then execute the function and use the returned value.

The CSS style attributes are not given values in the template file. Instead they always use a token. These tokens define an actual style in the PROIVDefault-mapping.js file. This allows you to change the CSS being used, by loading a different mapping file, without modifying the template file.
