Deleting a User-Defined Function Link

The User-Defined Function Links functionality enables you to define your own Function Links based on data values held by variables in other functions.

To delete a User-Defined Function Link, follow these steps:

Add a GLOBAL_LSCALL that calls the @VIPDeleteUserLinkage Global Function to a function (an Update Function, for example).

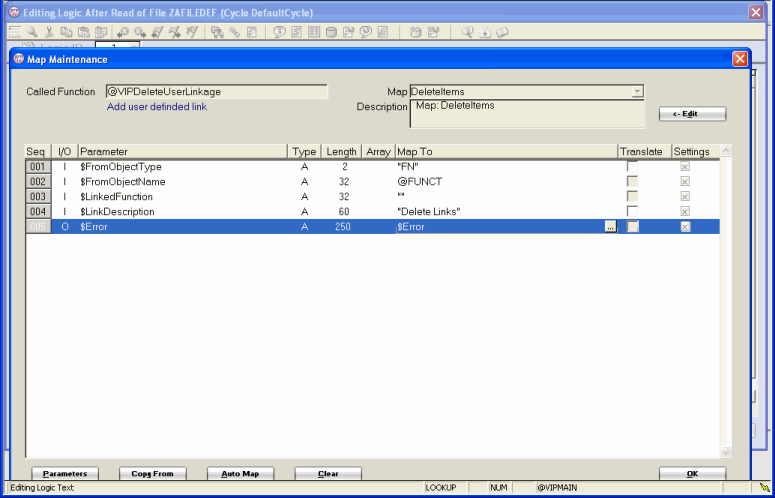

Click Global Interface Mapping icon on the Logic Editor toolbar to open the Map Maintenance window. Click here to view an example screenshot.

Enter the relevant details for the @VIPDeleteUserLinkage Global Function parameters into the Map To fields using the following table as a guide.

Name	Usage	Type
$FromObjectType	Specifies the Object Type. Valid options are: FN - Function GL - Global Logic Mandatory	Input
$FromObjectName	The name of the function or Global Logic the link is from. Mandatory	Input
$LinkedFunction	The name of the function that is linked to. Mandatory	Input
$LinkDescription	Free text description. When you supply the $LinkDescription, then only that specific link is deleted. If you enter "" all links to the specified function are deleted. Optional	Input
$Error	Contains a value when a link was not added or deleted successfully. This is to due either: invalid or null object type non-existent or null linked from object non-existent or null link to function name. (The parameter is blank if the link value is added or deleted successfully.)	Output

Build and run the Update function to run the @VIPDeleteUserLinkage Global Function.

Click Linkage tab on the PROIV Developer workspace to open the Linkage view. Click icon to update the view and the User-Defined Function Links are removed from the Linkage view.

Topic ID: 500603
