Licence Server

A licence is used to authorize users to use a specified version, or capacity or services in certain period. The PROIV Licence Server is a component in the PROIV Dashboard to control the access and enable PROIV to run on the client machines based on the licence file configuration that is uploaded.

Licence Configuration

To set the Licence configuration, do the following:

  1. On the Licensing Operations page, expand Current Licence Usage.
    The details of the current licence usage appear.

  2. The following table describes the fields to help you to understand the significance.

    Field Name

    Description

    Current Licence Usage

    Type

    The type of licence, for example PROIV Runtime, PROIV Development and PROIV Gateway Manager.

    Count

    The number of seats available for this Licence Type.

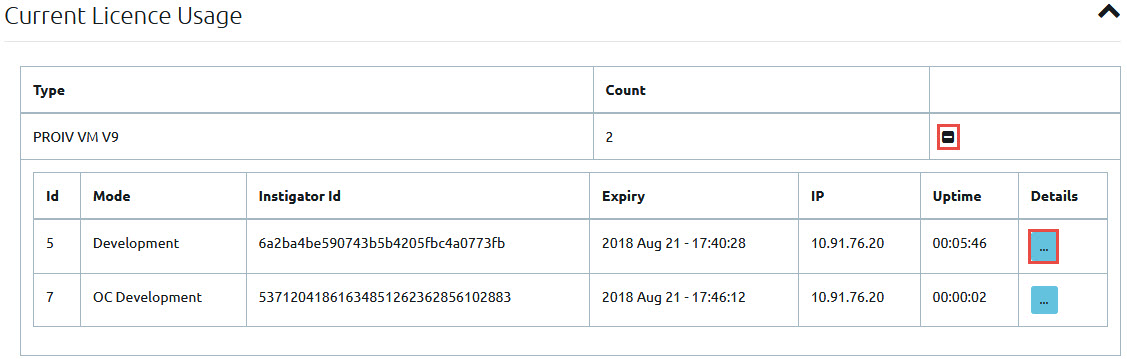

  3. Click the Expander (+) button to view the current licence usage.
    The licence usage details are displayed.

    Field Name

    Description

    Current Licence Usage

    ID

    Licence session identifier.

    Mode

    The mode of licence. For example, Run-Time or Development.

    Instigator ID

    An Instigator ID if the application type related to the session ID is subject to IP licensing.

    Expiry

    The date and time that the licence to expire.

    IP

    The IP address of the PROIV Virtual Machine server that requested the licence seat.

    Uptime

    Amount of time the licence has been running, in seconds.

  4. To view the details of the licence mode, click Details.

    Invert

    Click Invert to invert the selection of any sessions that are selected.

    For example, if there are three sessions displayed, and you select session 1 and 2, clicking the Invert check box will deselect 1 and 2, and select session 3.

    Revoke

    Click Revoke to revoke the selected licences.

Current Configuration

  1. On the Licence Operations page, expand Current Configuration.
    The configuration of the current licence is displayed. The following table provides the description of fields.

    General Configuration from the current licence file

    Licence File ID

    Licence file identifier.

    Version

    The version number of the licence file.

    Actual Site Identifier

    An identifier of the host that the licence server is running on. It is generated by the PROIV installation.

    Site Identifier

    An identifier of the host that the licence server is running on. It is generated by the PROIV installation.

    Keep Alive (Seconds)

    The period of time specified in seconds after which the licence server and PROIV components will communicate in order to check their licensed state. The licence server defaults to 60 seconds if this attribute is not set.

    Licence Server Port

    The licence server accepts requests from PROIV components on this port. The default port is 5439. This can be altered to avoid port clashes.

    Description

    The description of the licence file such as version, or the service that can be used in certain period.

    Licence Groups

    Licence Group

    Contains the details of the licence groups. A licence group can contain multiple licence sets with different expiry dates. A licence set specifies the licence type, the number of seats available in the set, and when the licence expires. The options associated with the licence type are also displayed.

    Serial Number

    The serial number is a group identifier which uniquely identifies a set of licences on a server. It controls the licence pool which is used to acquire licences.

    Site Identifier

    The identifier of the host that the licence server is running on. It is generated by the PROIV installation.

    Licence Type

    Type of licence. For example: PROIV Runtime, PROIV Development and PROIV Gateway Manager.

    Count

    Number of seats available for this Licence Type.

    Expiry Type

    ABSOLUTE signifies that the licence expires on given date.

    RELATIVE signifies that the licence expires after the specified amount of time has run out, relative to the start time. For example, when Hours = 2, the licence will expire in two hours relative to its start time. The user must restart the component for another relative licence period.

    Expires

    The licence validity duration. For example, it is 3 hours for the default licence file.

    Options

    An arbitrary set of options associated with the licence type. For example, a licence type of 'PROIV Development' have the following options enabled: CISAM, ORACLE, SQLSERVER, POSTGRES, LEAN, CHANGE MANAGEMENT, and ASSURE.

Update Licence Configuration File

To update the Licence server configuration, upload the licence file.
Note: The Licence Configuration File must have the correct Site ID.

  1. Click Choose File to select the Licence file and then click Upload.
    The Licence file gets uploaded and displays the configuration in Current Configuration section.
