The SSOs X-Reference window enables you to view which functions call the selected SSO.
To open the SSOs X-Reference window:
On the main PROIV screen, select the Tools tab.
Select the List Based Tools tab.
In the Object Cross References section, click the SSOs X-Reference icon.
The Function Calls to SSOs window displays.
Select the relevant SSO from the SSO drop-down list and press RETURN. The window is populated with the functions that call the SSO.
You can assign all of the calling functions to a work list or print out a report from this window.
|
Item |
Description |
|
SSO |
Displays a drop-down list of the SSOs that are called by functions in the open project. |
|
Reselect |
Re-displays the list of SSOs enabling you to select a different SSO. |
|
Called By Function |
Displays the name of the function that calls the SSO. |
|
Type |
Displays the type of function. |
|
Function Title |
Displays the title of the function. |
|
Tag Id |
Displays the SSO's Tag ID used in the function. The tag name is used to reference the SSO object in the function. |
|
I/P |
Distinguishes between SSOs which are instantiated in the function or passed in as a parameter. |
|
Worklist |
Adds the functions which call the selected SSO to the Active Work List, or you can decide to add them to a new work list and make that your active one. |
|
|

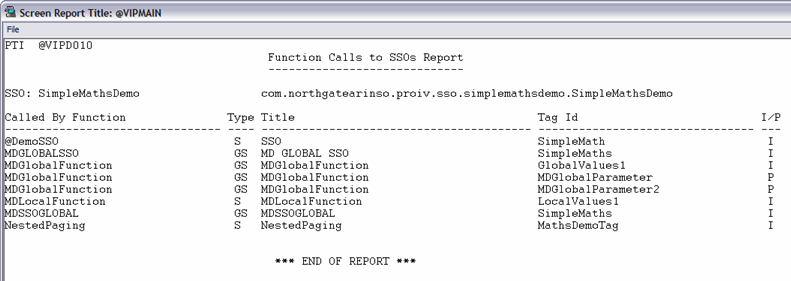

Generates the Function Calls to SSOs ReportFunction Calls to SSOs Report which can be saved as a text file and printed out if required.
|
|
Cancel |
Closes the Function Calls to SSOs window. |
