Paging Group Headings |
Lite Client |
|
The PROIV Paging Screen Cycle Headings tab allows the developer to add group headings to the Paging Area grid component. These headings appear at the top of the paging area and show the user that columns in the paging area are associated with each other.
Paging headers are defined at the function level; once defined they can be associated with the field in the paging cycle. You do this in field properties, select the Column tab, and you can choose the tag id of the Paging Header you wish to associate with the field.
A field can only belong to one header and a header will only be visible if at least one of its fields is visible in the paging area.
If multiple fields in a paging cycle are assigned the same header and are not next to each other then the header will appear more than once.
The headings are given the group name as a CSS class. This allows you to give all headings in the same group the same style.

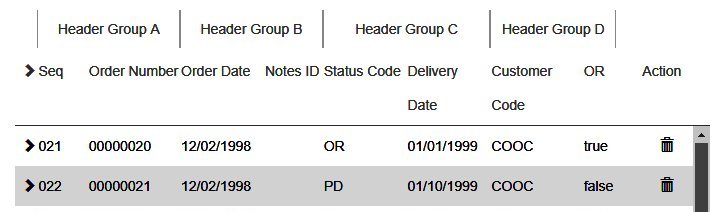

This shows a paging area with 8 columns arranged into 4 groups.
